Decoding Database Design
1. Understanding Entity Relationship Diagrams
Ever peeked at a database design document and felt like you were reading ancient hieroglyphics? Trust me, you're not alone. Those diagrams, called Entity-Relationship Diagrams (ERDs), are the blueprints of data organization. They use specific symbols to represent different elements, kind of like how road signs tell you what's ahead. One of the slightly more mysterious symbols is the one for a weak entity. Think of it as the underdog of the entity world, but just as important!

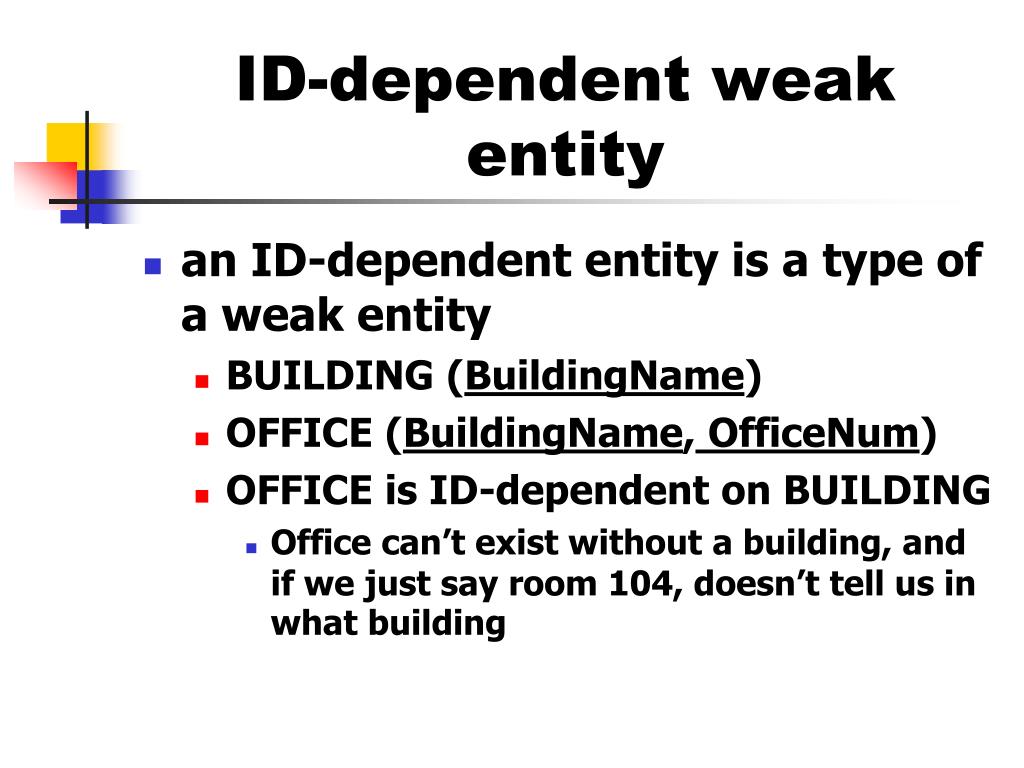

So, what exactly is a weak entity? Imagine a "Dependent" entity, like a child or spouse, that only exists in relation to an "Employee" entity. A dependent, by itself, doesn't make much sense in the context of your employee database. It needs that link to the employee to be meaningful. That's the essence of a weak entity: its existence depends on another entity, known as the owning or identifying entity.
Now, put on your detective hat! Let's find out how it is symbolized. When we are drawing our ERD, we need a symbol to specify our weak entity, so that other people can understand what we are doing. Well, in ERD, to represent the weak entity, we don't use a single rectangle, but a double rectangle!
The double rectangle indicates that entity's dependence on the primary entity. You might even say the outer rectangle is holding the inner rectangle up! This visual cue helps anyone looking at the diagram quickly identify those entities that are reliant on other entities for their very existence. It's like a visual shorthand for "handle with care, needs context!"
